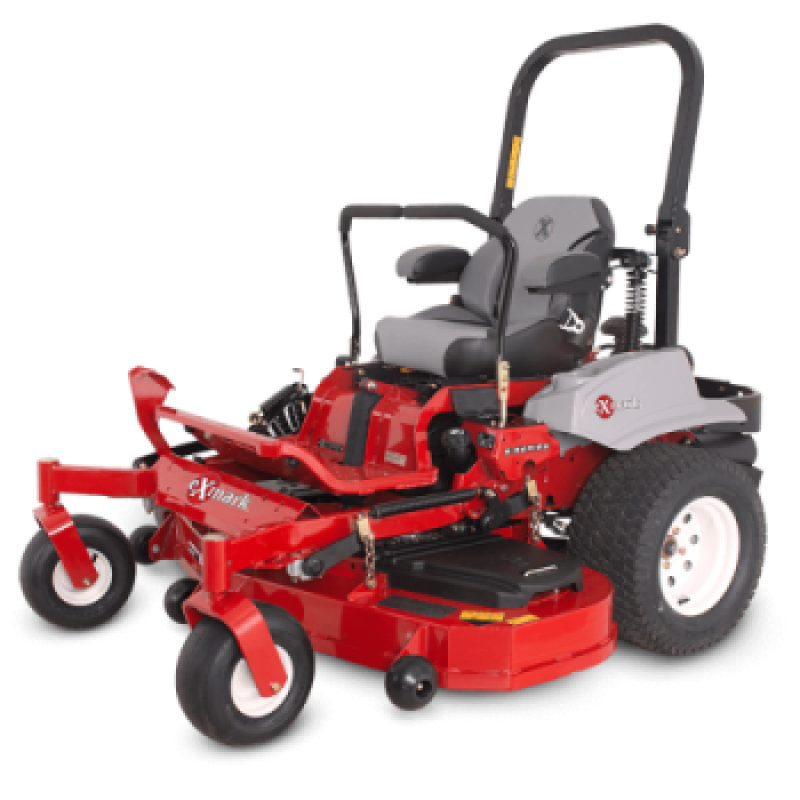

Lazer Z E-Series Kawasaki 60"

Features

• No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver
• Drive tires 24 x 12-12
• Unibody, welded, heavy-duty 1.5" x 3" tubular steel frame
• Hydraulically dampened twin levers steering control system
• Front caster tires 13 x 6.5-6, smooth-tread, semi-pneumatic
• Lever-actuated disc brake parking brake design
• Deluxe, bolstered suspension seat with elastomeric vibration control material
• Electrical 12-volt battery with 15-amp alternator.
• Engine hour meter and cup holder
• Heavy-duty canister air filtration system
• Electronic sender fuel indicator
• Foot-controlled deck lift to change cutting height and lifts the deck to maneuver around obstacles, or place in transport position
• Operator presence controls (OPC) and drive system interlock, with safety interlock system indicators
• Full-floating ultraCut series 4 deck 60" with side discharge standard

Specifications

• Kawasaki FX801v
• Engine displacement 852
• Engine speed 3,750 RPM
• Fuel capacity 8-gallon (30.3-L) single fuel tank with single fill location
• Speed infinitely variable speed selection from 0?10.0 mph (16 kmph) forward, 0?6.0 mph (9.7 kmph) reverse.
• Blade tip speed approximately 18,500 fpm.
• Cutting heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator?s seat.
• 3 blades at 20.50" length
• Width 72.8 in. (184.9 cm)
• Length 83.1 in. (211.1 cm)
• Height 70.5 in. (179.1 cm)
• Curb weight 1180
