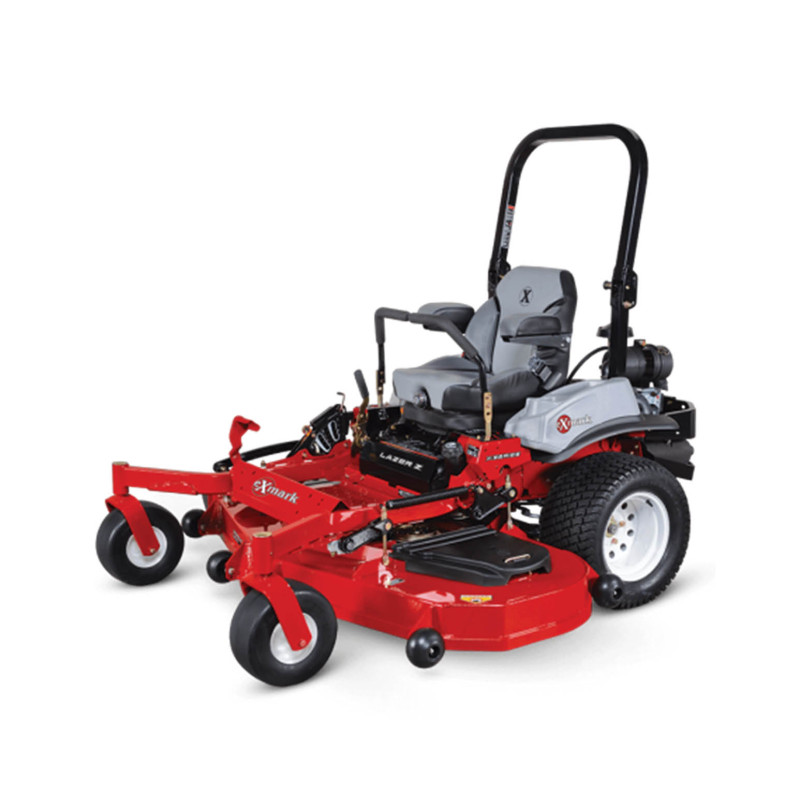

Lazer Z X-Series Kohler 60"

Features

• No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 30mm (1.18") diameter spindle shaft and splined blade driver
• Drive tires 24 x 12-12
• Unibody, welded, heavy-duty 1.5" x 3" tubular steel frame
• Hydraulically dampened twin levers steering control system
• Front caster tires 13 x 6.5-6, smooth-tread, semi-pneumatic
• Lever-actuated disc brake parking brake design
• Deluxe, two tone, bolstered suspension seat with elastomeric vibration control material
• Electrical 12-volt battery with 15-amp alternator
• Engine hour meter and cup holder
• Heavy-duty canister air filtration system
• RED Technology
• Electronic sender fuel indicator
• Foot-controlled deck lift to change cutting height and lifts the deck to maneuver around obstacles, or place in transport position
• Operator presence controls (OPC) and drive system interlock, with safety interlock system indicators
• Full-floating ultraCut series 6 deck 60" with side discharge standard

Specifications

• Engine: Kohler ECV980
• Engine displacement: 999
• Engine speed: 3,750 RPM
• Fuel capacity: 12-gallon (45.4-L) single fuel tank with single fill location
• Speed infinitely variable speed selection from 0-11.5 mph (18.5 kmph) forward, 0-7.0 mph (11.3 kmph) reverse.
• Blade tip speed: approximately 18,500 fpm.
• Cutting heights: 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator's seat.
• 3 blades at 20.5" length
• Width: 72.8 in. (184.9 cm)
• Length: 83.1 in. (211.1 cm)
• Height: 70.5 in. (179.1 cm)
• Curb weight: 1256 lbs
