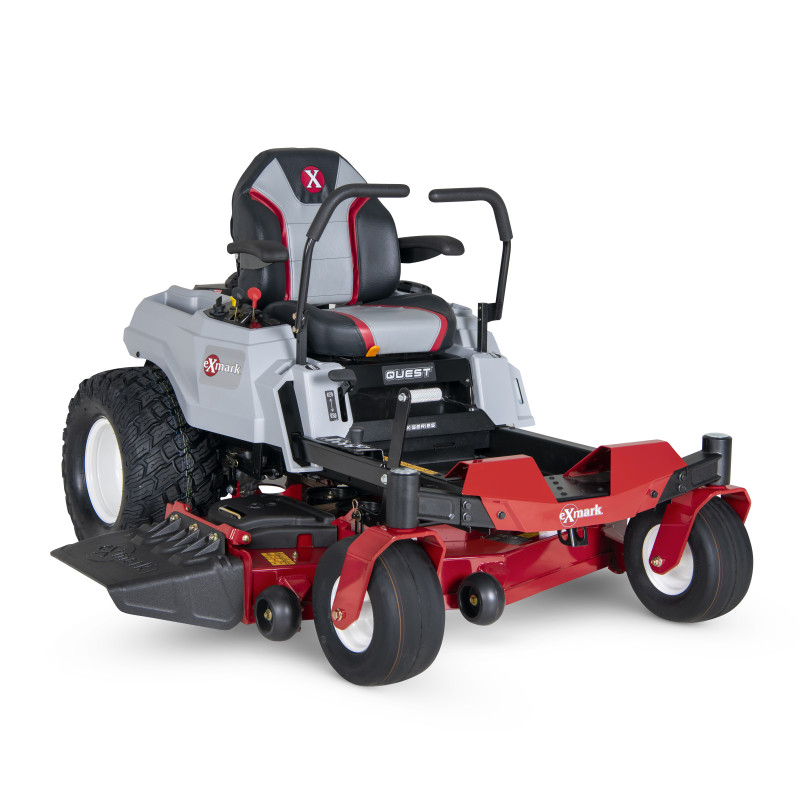

Quest X-Series Kohler 48"

Features

• No maintenance, sealed and non-greasable spindles; 7.30"-diameter cutter housing with 17mm (.67") diameter spindle shaft and hex blade driver
• Drive tires 22 x 11-10
• Unibody, riveted 10-guage steel
• Hydraulically dampened twin levers steering control system
• Front caster tires 13 x 6.5-6, smooth-tread, semi-pneumatic
• Lever-actuated pawl brake
• Commerical grade, high back contoured seat with foam padded seat cushion. Hinged mounting and spring suspension with adjustment in fore and aft for operator posistion.
• Electrical 12-volt battery with 15-amp alternator.
• Engine hour meter,  cup holder, tow hitch
• Standard engine manufacturers air filter
• Translucent visual fuel tank
• Foot-controlled deck lift to change cutting height and lifts the deck to maneuver around obstacles, or place in transport position
• Operator presence controls (OPC) and drive system interlock
• Series 3 full-floating ultracut deck 48" with side discharge standard and the option to bag or mulch

Specifications

• Engine: Kohler KT735
• Engine displacement: 735
• Engine speed: 3,300 RPM
• Fuel capacity: 3-gallon (11.0-L) single fuel tank with single fill location
• Speed infinitely variable speed selection from 0–8.0 mph (12.9 kmph) forward, 0–5.0 mph (8.0 kmph) reverse.
• Blade tip speed: approximately 18,500 fpm.
• Cutting heights: 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.50" (1.3 cm) increments adjustable from operator’s seat.
• 3 blades at 16.25" length
• Width: 59.5 in. (151.0 cm)
• Length: 76.0 in. (193.0 cm)
• Height: 47.6 in. (121.0 cm)
• Curb weight: 680 lbs
