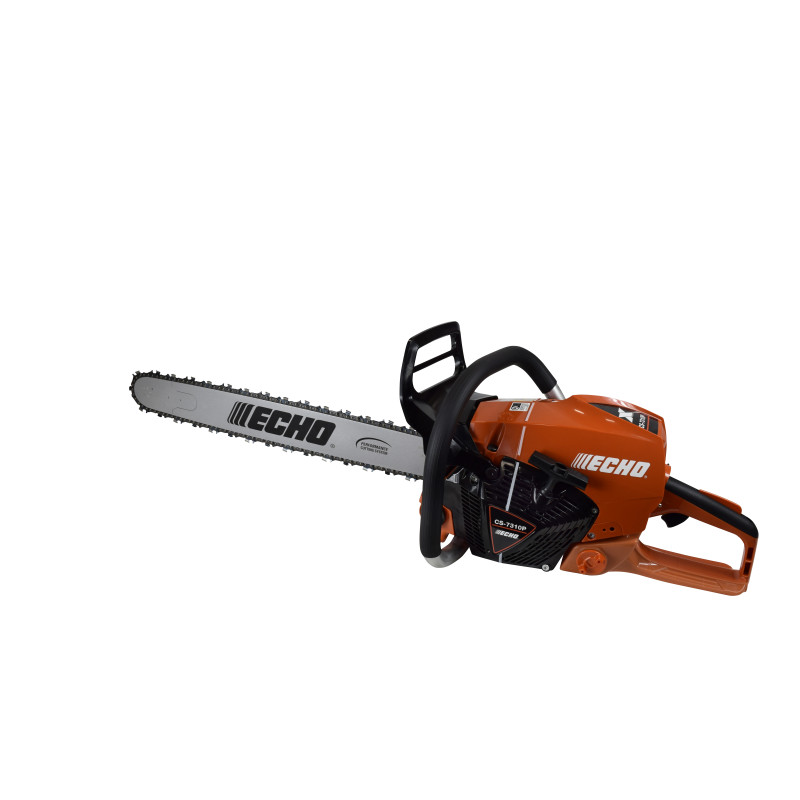

CS7310P - 73.5cc Chain Saw

Features

• Pleated air filter with a large surface area to ensure steady flow of clean air to carburetor
• Aluminum handle with rubber grip for strength and comfort
• Decompression valve for easy starting
• 3-point spring vibration reduction system for operator comfort
• 19mm captive bar nuts no chance of losing hardware
• Automatic, adjustable clutch-driven bar oiler operates only when the chain is moving to
• reduce oil consumption
• Chrome plated cylinder for long engine life
• Antivibration handle, bumper spikes, chain brake, electronic ignition, translucent fuel tank
• 20" .050 Bar: 20H0PS3872C / Chain: 72LPX72CQ or ES72LPX72E
• 20" .058 Bar: 20H8PS3872C / Chain: 73LPX72CQ or ES73LPX72E
• 24" .050 Bar: 24H0PS3884C / Chain: 72LPX84CQ or ES72LPX84E
• 24" .058 Bar: 24H8PS3884C / Chain: 73LPX84CQ or ES73LPX84E
• 28" .050 Bar: 28H0PS3893C / Chain: 72LPX93CQ or ES72LPX93E
• 28" .058 Bar: 28H8PS3892C / Chain: 73LPX92CQ
• 32" .050 Bar: 32H0PS3805C / Chain: 72LPX105CQ
• 32" .058 Bar: 32H8PS3805C / Chain: 73LPX105CQ

Specifications

• Engine Displacement: 73.5cc
• Engine Cycles, max: 13,100 (rpm)
• Fuel Tank Capacity: 27.1 oz
• Bar Oil Capacity: 12.2 oz
• Bar Length (in.): 20, 24, 28, 32
• Oiler Type: Automatic, adjustable
• Chain gauge (in.): 0.050" or 0.058"
• Chain Pitch (in.): 3/8
• Chain Speed (m/s): 28.9
• Max. Engine Power: 5.47 (hp)
• Max. Engine Torque: 4.45 (Nm)
• Cut Diameter, maximum: (in.) 35,42,49, 56
• Dry Weight: 14.9 lbs
• Warranty: Consumer 5 years / Commercial 1 year
